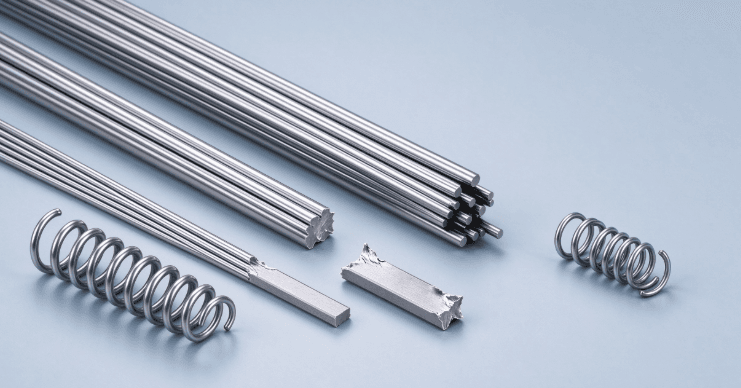

Spring Steel Wire Properties – Tensile Strength, Fatigue Life, and Elasticity

Table of Contents

Introduction

Tensile Strength – The Foundation of Spring Performance

Fatigue Life – The Critical Design Parameter

Elasticity and Modulus of Elasticity

The Interplay Between Strength and Fatigue

Advanced Processing Technologies

Material Grades and Typical Property Ranges

Conclusion

Frequently Asked Questions (FAQ)

1. Introduction

Spring steel wire is one of those materials that quietly holds modern industry together. From the valve springs in your car engine to the suspension coils that smooth out every bump in the road, this wire performs one of the most demanding jobs in engineering. It must stretch, compress, twist, and return to its original shape—millions of times over—without failing.

The three defining properties of any spring steel wire are tensile strength, fatigue life, and elasticity. They're not independent variables. Change one, and you affect the others. The engineering challenge lies in balancing them to achieve the performance you need for a specific application.

This review explores these core properties, the science behind them, and the processing technologies that push spring steel wire to new performance levels. We'll also look at how different material grades compare and what the latest research says about pushing the boundaries of what's possible.

2. Tensile Strength – The Foundation of Spring Performance

Tensile strength is arguably the most fundamental property of spring steel wire. It determines how much load the wire can carry before it begins to deform permanently.

For high-performance spring steels, tensile strength values are impressive. Research on 54SiCr6 steel, used extensively in automotive coil springs, shows a tensile strength of 2130 MPa for quenched and tempered material . Advanced processing through strain-assisted tempering (SAT) pushes that even higher—to 2434 MPa . This is extremely strong for a steel product.

High-carbon patented spring steel wire typically offers tensile strengths in the 1800–2200 MPa range . For stainless spring steels, the values are somewhat lower but still substantial. AISI 302 stainless wire, for example, ranges from 2150–2470 MPa for finer diameters (0.30–0.65 mm), decreasing to about 1300–1500 MPa as wire diameter increases .

There's a clear relationship between wire diameter and tensile strength. Thinner wires achieve higher tensile strengths because cold drawing work-hardens the material more effectively. The same material in a larger diameter has had less cumulative deformation and therefore lower tensile strength.

3. Fatigue Life – The Critical Design Parameter

If tensile strength is about how much load the wire can take once, fatigue life is about how many times it can take that load before failing. For springs, this is often the deciding factor in component design.

The fatigue behavior of spring steel wire is complex and sensitive to multiple factors. Research has shown that in high-cycle fatigue regimes (above 10⁶ cycles), crack initiation accounts for more than 90% of the total fatigue life . This means most of the service life is spent developing microscopic cracks; once a crack initiates, final failure follows relatively quickly.

The type of steel matters significantly. One study comparing Cr-V and Cr-Si spring steels found that Cr-V wire exhibits a conventional fatigue limit—the S-N curve flattens out after about 10⁶ cycles at a maximum stress of 800 MPa . Cr-Si steel, however, continues to show decreasing fatigue strength beyond 10⁶ cycles and never develops a true fatigue limit. For this material, fatigue is better described as a fatigue strength at a given number of cycles .

Inclusions and surface defects are the primary culprits in fatigue failure. Non-metallic inclusions like MnS, TiN, and oxides act as stress risers where cracks initiate . For high-strength steels with tensile strength above 1200 MPa, further increasing tensile strength has little or no effect on fatigue limit unless inclusion control is also addressed .

4. Elasticity and Modulus of Elasticity

Elasticity is what makes spring steel a spring. The modulus of elasticity (Young's modulus) determines how much the wire deflects under load and how much energy it can store.

For most spring steels, the modulus of elasticity is remarkably consistent regardless of tensile strength. Typically, it falls in the range of 200–210 GPa for carbon spring steels and around 180–185 GPa for stainless grades . For 54SiCr6 spring steel, Young's modulus is about 202 GPa in the quenched and tempered state . GARBA 188 stainless spring wire has an E modulus of approximately 180 kN/mm² in the drawn condition and 185 kN/mm² after heat treatment .

The shear modulus (G) is equally important for torsion springs. For spring steel materials, G is approximately 78.5 GPa . For stainless steels, it's slightly lower at about 68.5 GPa for SUS304 and SUS316, and 73.5 GPa for precipitation-hardening grades like SUS631J1 .

One critical point: the elastic limit (proportional limit) of spring steel is what determines how much load can be applied without permanent set. High-strength spring steels can have elastic limits above 1500 MPa . This high elastic limit, combined with good ductility, is what allows lightweight spring designs that store more energy per unit weight.

5. The Interplay Between Strength and Fatigue

Here's where things get interesting—and counterintuitive. In spring steel wire, increasing tensile strength doesn't always improve fatigue performance. In fact, research shows that for steels with ultimate tensile strength exceeding 1500 MPa, further strength increases have no observable effect on fatigue limit .

Why? Because fatigue failure in high-strength spring steel is controlled by inclusions and surface defects, not by the material's intrinsic strength. Cracks initiate at these defects long before the material reaches its tensile limit. The steel's resistance to crack propagation is what matters, and that's not directly tied to tensile strength.

This explains why fatigue performance varies significantly between different steel types even when tensile strengths are similar. Inclusion control, surface quality, and processing history all play crucial roles.

Laser shock peening is one technology that addresses this limitation. By creating deep compressive residual stresses (up to 11 mm deep), LSP shifts the crack initiation mechanism from surface defects to interior inclusions . This can significantly extend fatigue life without changing the base tensile strength of the material .

6. Advanced Processing Technologies

The pursuit of better spring steel wire performance has driven the development of several advanced processing technologies.

Strain-Assisted Tempering (SAT) combines plastic deformation with tempering to achieve extraordinary tensile strengths. In 54SiCr6 steel, SAT processing achieves a yield strength of 2398 MPa and UTS of 2434 MPa—a significant improvement over conventional quench and tempering . The trade-off is a reduction in ductility: elongation drops from 7.8% to 2.8% .

Laser Shock Peening (LSP) uses high-energy laser pulses to induce deep compressive residual stresses. Unlike surface peening techniques that affect only the near-surface layer, LSP can create residual stresses up to 11 mm deep . This shifts the fatigue crack initiation site from the surface to internal inclusions, improving fatigue resistance significantly .

Patenting is a traditional but still effective process for high-carbon steel wire. Lead patenting creates a uniform martensite structure that enables high tensile strengths (1800–2200 MPa) while retaining good ductility, as measured by torsion tests of 15 turns or more .

7. Material Grades and Typical Property Ranges

Different applications demand different balances of properties. Here's a summary of typical property ranges for common spring steel wire grades:

The variation in tensile strength for stainless steels depends strongly on wire diameter. Finer wires achieve significantly higher strengths due to greater cold work.

8. Conclusion

Spring steel wire is a study in material optimization. Tensile strength gives it load-carrying capacity. Fatigue life determines how long it lasts in service. Elasticity defines how it stores and releases energy.

The relationships between these properties are complex. Higher tensile strength doesn't automatically mean better fatigue life. In fact, once you exceed about 1500 MPa, further strength increases do little for fatigue unless you also control inclusions and surface quality.

This is where advanced processing comes in. Technologies like SAT push tensile strength to new levels. LSP addresses the fatigue limitations of high-strength materials by creating deep compressive residual stresses that shift crack initiation sites from the surface to internal defects.

For design engineers, the message is clear: specify your spring steel wire based on the entire package of properties—tensile strength, fatigue resistance, and elastic behavior—not on any single number. And if your application demands the absolute best, consider how advanced processing technologies can push performance beyond what standard grades can deliver.

9. Frequently Asked Questions (FAQ)

Q: What is the typical tensile strength range for spring steel wire?

A: For carbon spring steels, tensile strengths typically range from 1800–2200 MPa, with some advanced grades reaching over 2400 MPa. Stainless grades range from 1300–2470 MPa depending on diameter and grade .

Q: Why does fatigue strength not increase with tensile strength above a certain point?

A: In high-strength spring steels (UTS > 1500 MPa), fatigue failure is controlled by inclusions and surface defects rather than intrinsic material strength. Cracks initiate at these defects long before the material reaches its tensile limit .

Q: What is the modulus of elasticity for spring steel?

A: For carbon spring steels, the Young's modulus is approximately 200–210 GPa. For stainless grades, it's slightly lower, around 180–185 GPa .

Q: How does wire diameter affect tensile strength?

A: Smaller diameter wires generally achieve higher tensile strengths because they undergo more cold drawing work-hardening during manufacturing .

Q: What is laser shock peening and how does it improve fatigue life?

A: LSP uses high-energy laser pulses to induce deep compressive residual stresses (up to 11 mm deep) in the material surface. This shifts fatigue crack initiation from surface defects to internal inclusions, significantly extending fatigue life .

Q: Which stainless steel grade is best for corrosive environments?

A: AISI 316 is recommended for springs exposed to corrosive conditions. Type 316 offers superior corrosion resistance compared to 302/304, though its mechanical properties (tensile strength) are somewhat lower .
